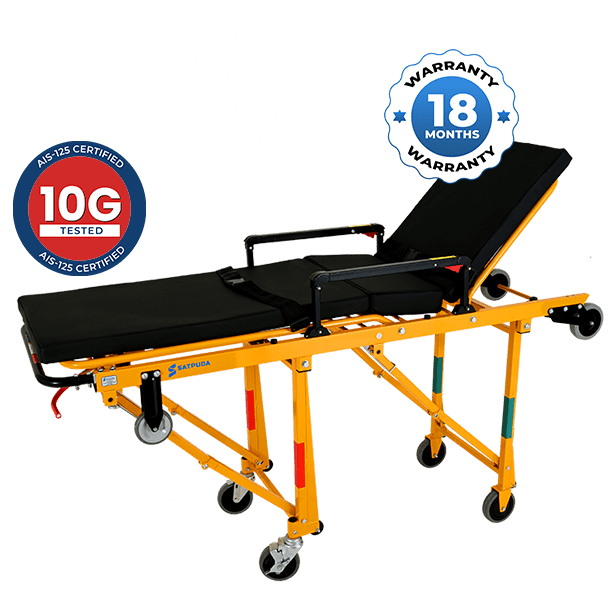

Model : AST - 623EC

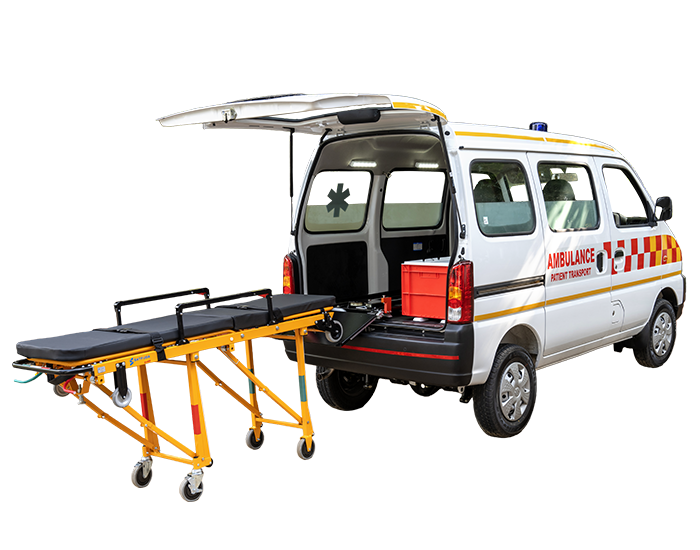

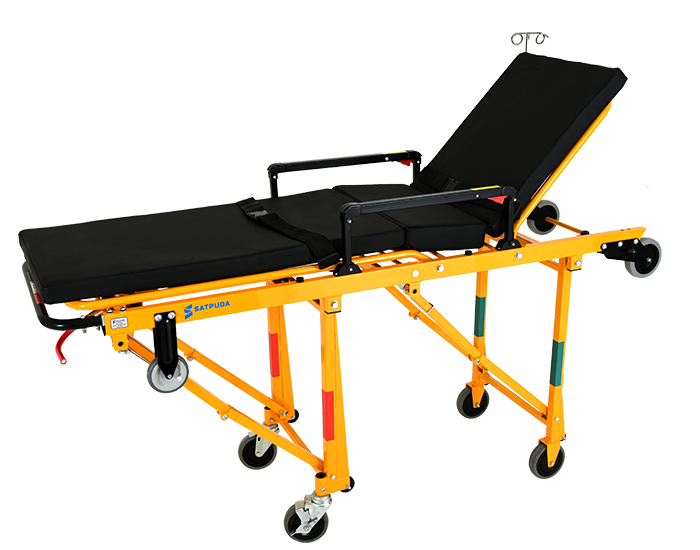

Ambulance Structure Image 02
Ambulance Structure Image 01
Ambulance Structure Image 05
Ambulance Structure Image 06

Technical Data

  • Length

    Length: 1835mm

  • Width

    Width: 550mm

  • Wheel Diameter

    Wheel Diameter: 125mm

  • Brakes

    Brakes: On rear wheels

  • Structural Material

    Structural Material: Mild Steel

  • Safe Working Load

    Safe Working Load: 200Kg

  • Collapsible Side Railing

    Collapsible Side Railing: Yes

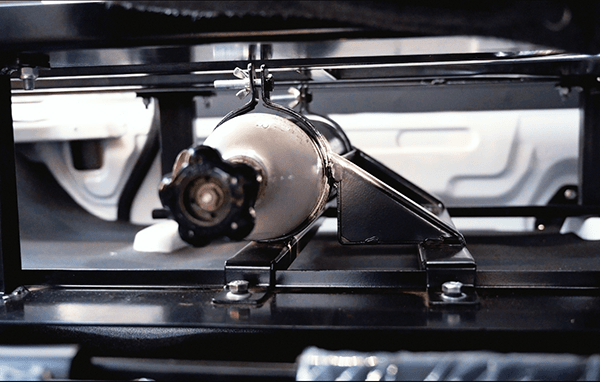

  • Oxygen Cylinder Bracket

    Oxygen Cylinder Bracket: 2.2L

  • 10G Tested

    10G Tested

Features

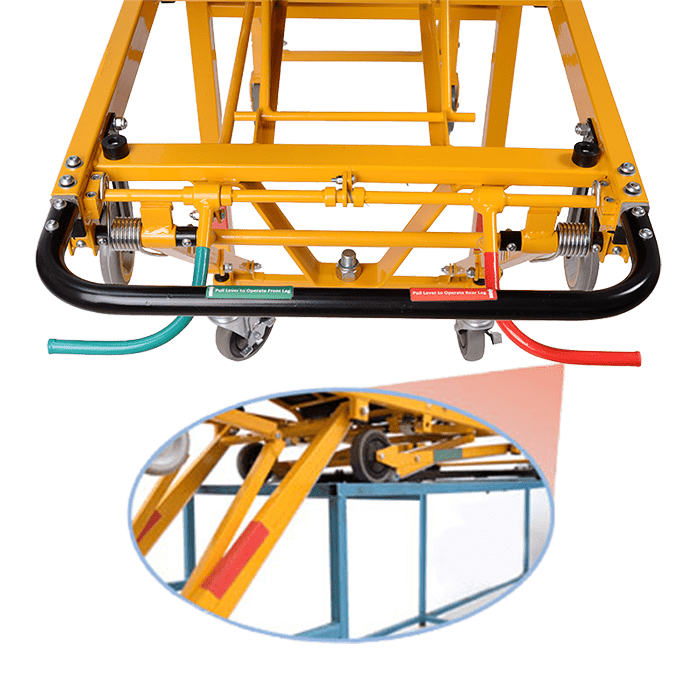

Independent folding of front and rear legs

Actuation of front leg & rear leg is done by dedicated levers thus ensuring aomfort for patient & operator while loading & unloading the stretcher in ambulance.

Independent Folding

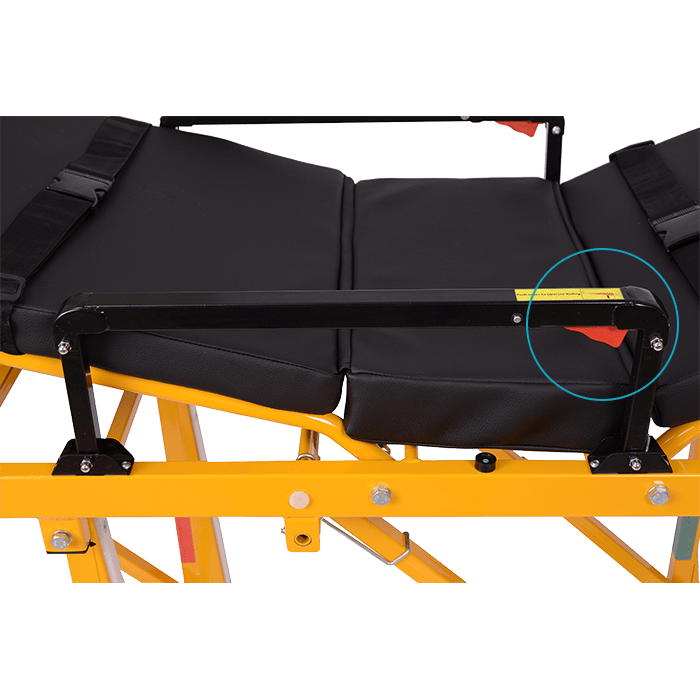

Collapsible side railing

The collapsible mechanism of the side railing ensures that the railings can be folded and retracted without fouling with vehicle's body or medical instruments.

Collapsible Side Railing

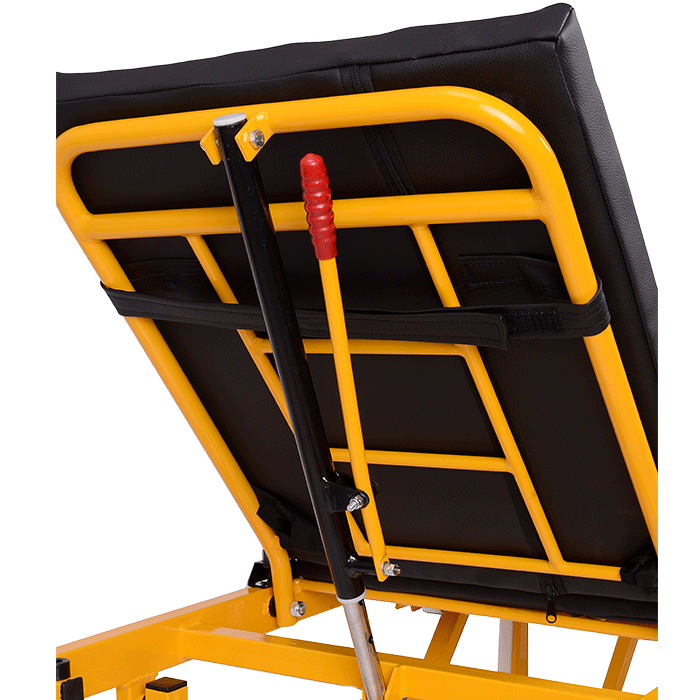

Back rest with 5 fixing positions

The beckrest can be easily adjusted to 5 different positions as per the patient's requirement. Designed to bring the backrest to flat position quickly for performing CPR.

Back Rest with 5 Fixing Positions

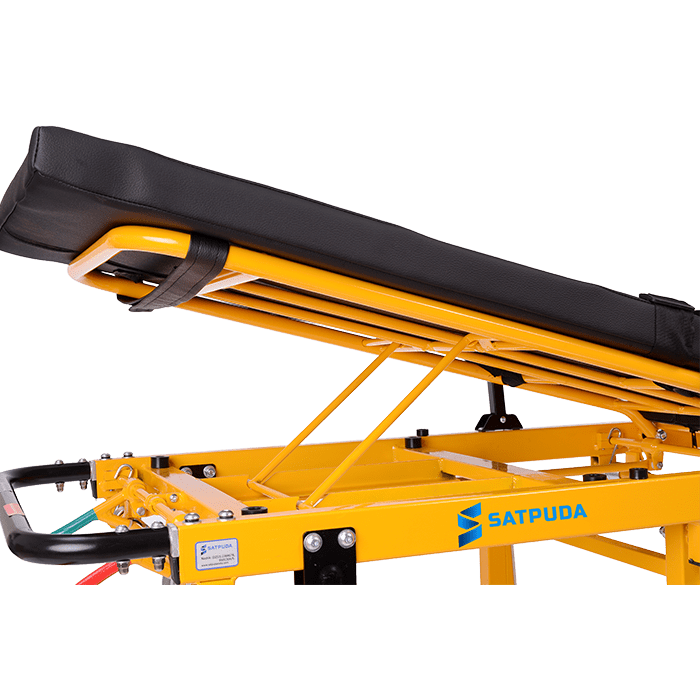

Provision for leg rest elevation

Adjustment for easy elevation of leg rest to create semi-fowler position. Provision is as per AIS-125 standard.

Provision for Leg Rest

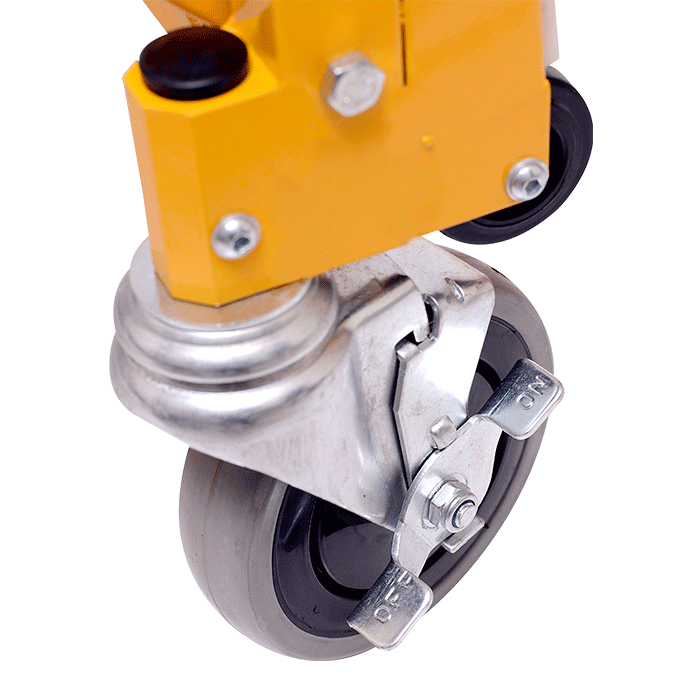

Castor wheels with brake

Easy manoeuvrability of stretcher facilitated by use of ball bearing wheels. Side brake provision for easy locking and un-locking of stretcher wheels to arrest stretcher movement

Castor Wheels with Brake

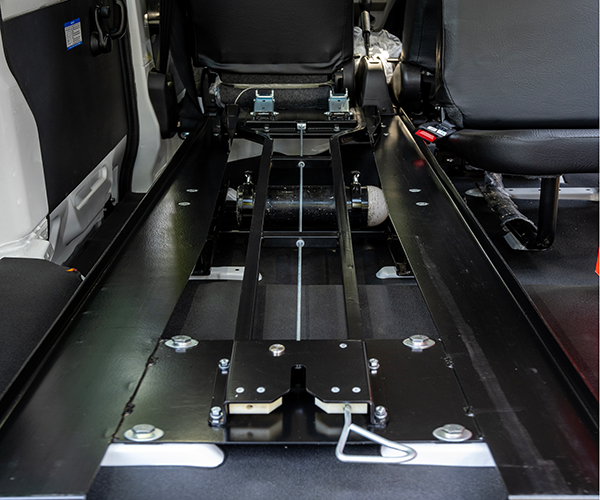

Easy locking and unlocking of stretcher in ambulance

Stretcher is automatically locked into position by just sliding the stretcher in the locking base fixed on the vehicle floor. A simple pull to the locking base lever releases the stretcher from the locking base.

Ambulance Structure Image 05

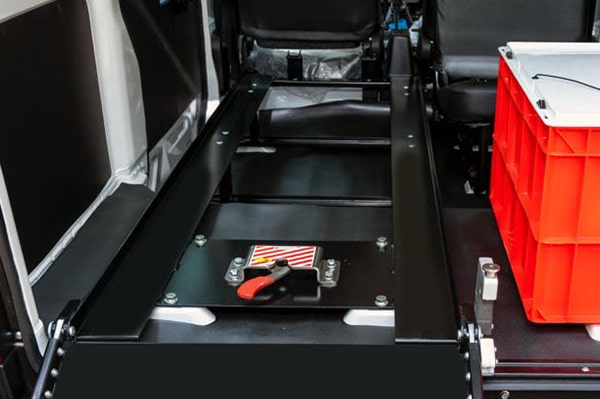

Optional lock (Non AIS)
Non AIS Ecco
Ambulance Structure Image 05

The GoRill Advantages

Ambulance Stretcher for Maruti Eeco Omni Ambulances Buy it Once
Carry Heavy Weight

Your patient is always safe on your ‘10G certified’ GoRill stretcher.

Experience Zero Stretcher Breakdown Time

Now carry heavy-weight patients with ease! Thanks to GoRill’s more than 200Kgs weight bearing capacity.

Stretcher with foldable legs

Provide your patients a comfortable and safe experience with GoRill’s self aligning castor wheel feature & independent leg folding design.

Transfer patients single handedly

Serve Indians carefree, because we got you covered - Free 18 months warranty

T & C Apply*
Transfer patients single handedly

Quick and easy stretcher maintenance with spare parts availability all over India. Your GoRill is always ready for duty!

Transfer patients single handedly

Save space and make your ambulance more spacious with GoRill’s space-saving collapsible side-railings.

Transfer patients single handedly

Transfer your patients single handedly with GoRill’s smooth & easy to operate design.

Transfer patients single handedly

Buy it once & Forget about it! GoRill is designed to last you for more than the life of your ambulance!

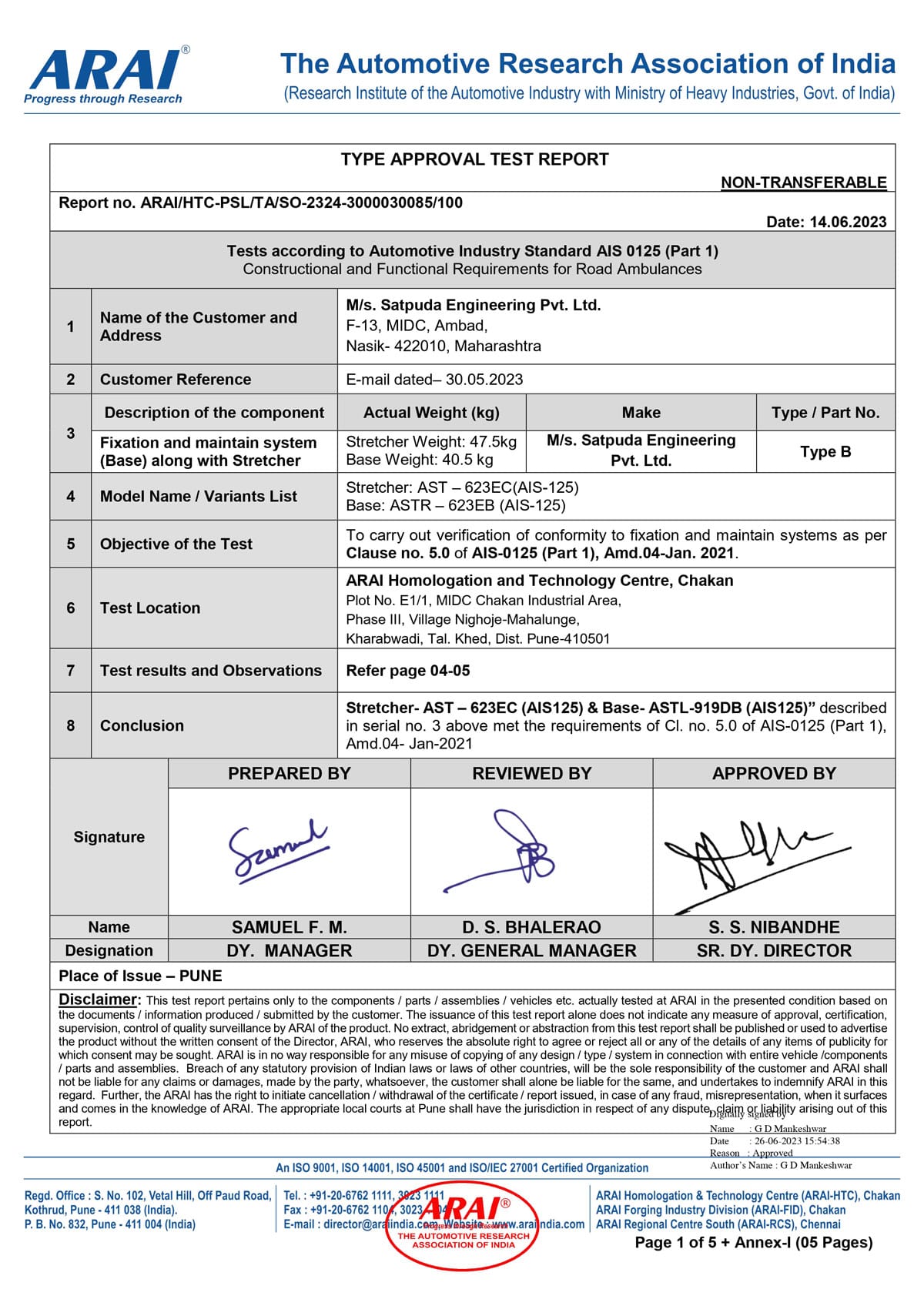

Introducing Satpuda’s AIS-125 Certified GoRill Ambulance Stretcher for Maruti Suzuki EECO Ambulance!

We are thrilled to unveil our latest product designed to enhance emergency medical care and revolutionize the way patients are transported. Our state of the Art AIS 125 Ambulance Stretcher is specifically tailored to fit seamlessly into the Maruti Suzuki EECO Ambulance.

With a primary focus on patient safety, comfort, and efficient healthcare delivery, our stretcher has been meticulously engineered to meet the demanding needs of modern emergency services.
