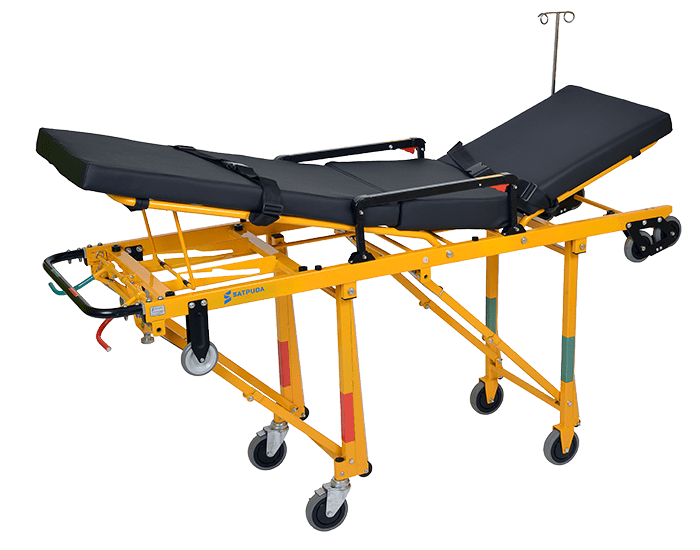

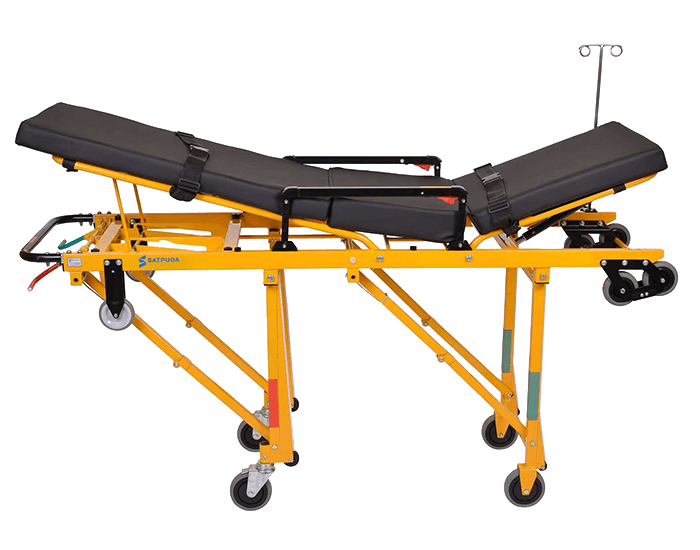

Model : AST - 919D
D Type Ambulance Stretcher
Technical Data
-
Length: 1850mm
-
Width: 550mm
-
Wheel Diameter: 125mm
-
Brakes: On rear wheels
-
Structural Material: Mild Steel
-
Safe Working Load: 200Kg
-
Collapsible Side Railing: Yes
-
I.V. Rod: Yes (1nos.)
Features
Independent folding of front and rear legs
Actuation of front leg and rear leg is done by dedicated levers thus ensuring the comfort of the patient and operator while loading and unloading of the stretcher in the ambulance.
Collapsible side railing
The collapsible mechanism of the side railing ensures that the railings can be folded and retracted without fouling with vehicle's body or medical instruments.

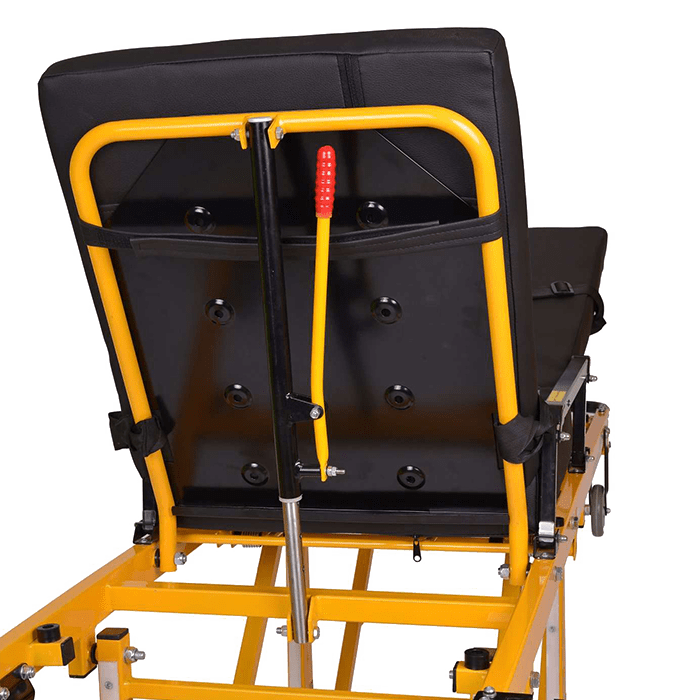

Back rest with 5 fixing positions
The beckrest can be easily adjusted to 5 different positions as per the patient's requirement. Designed to bring the backrest to flat position quickly for performing CPR. Back rest is fitted with an Aluminium back plate for performing CPR function.

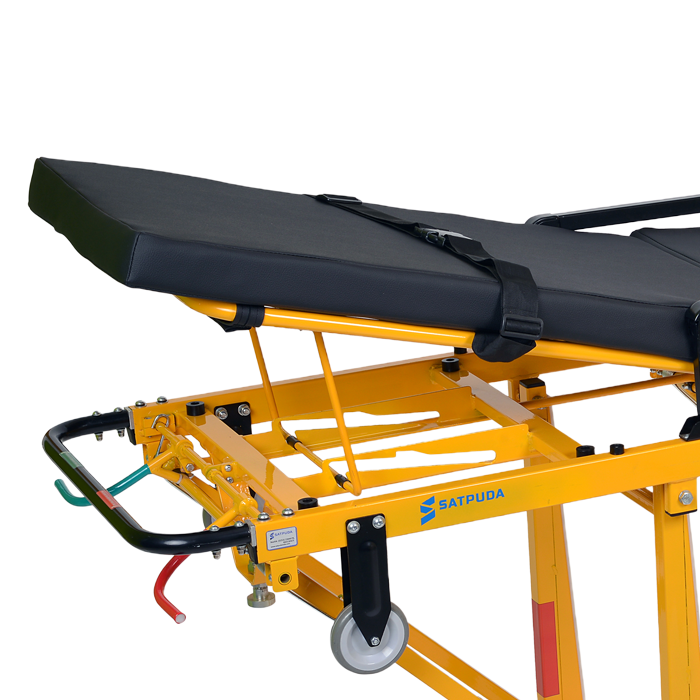

Provision for leg rest elevation
Adjustment for easy elevation of leg rest to create semi-fowler position. Provision is as per AIS-125 standard.
Castor wheels with brake
Easy manoeuvrability of stretcher facilitated by use of ball bearing wheels. Side brake provision for easy locking and un-locking of stretcher wheels to arrest stretcher movement

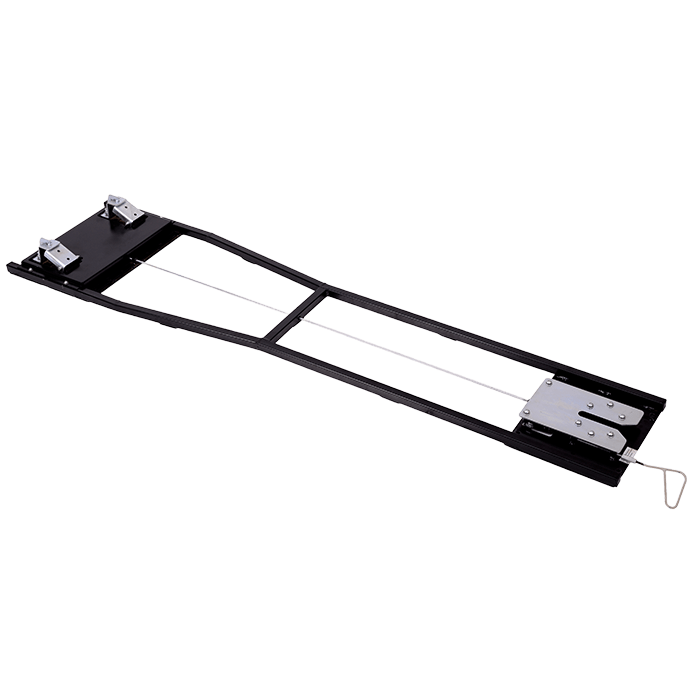

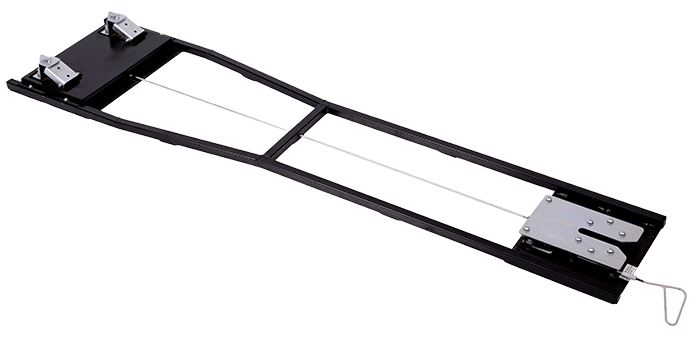

Easy locking and unlocking of stretcher in ambulance

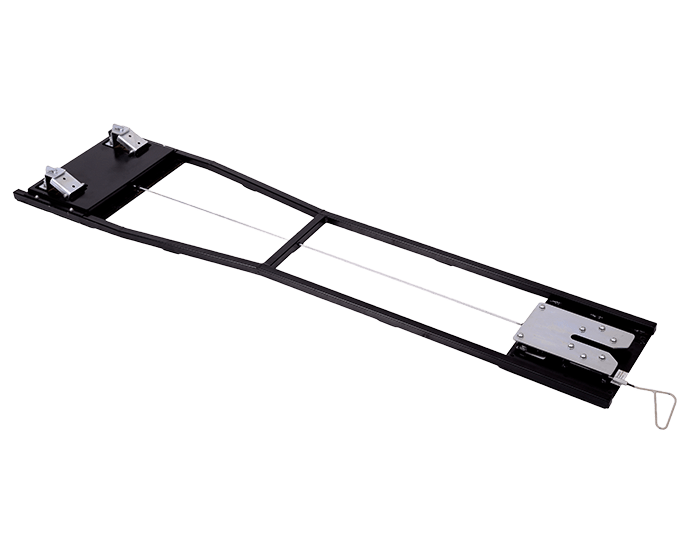

Stretcher is automatically locked into position by just sliding the stretcher in the locking base fixed on the vehicle floor. A simple pull to the locking base lever releases the stretcher from the locking base.

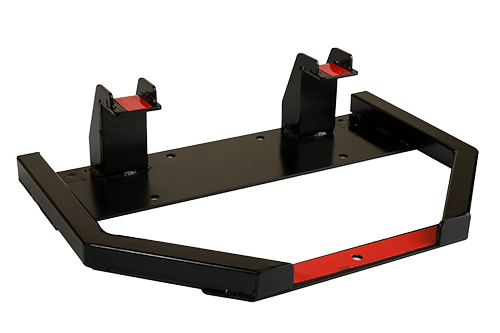

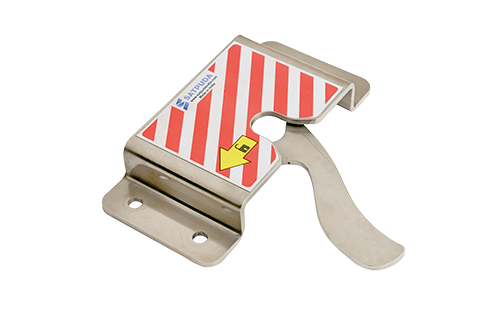

Optional lock (Non AIS)
