Model : AST - 320WD

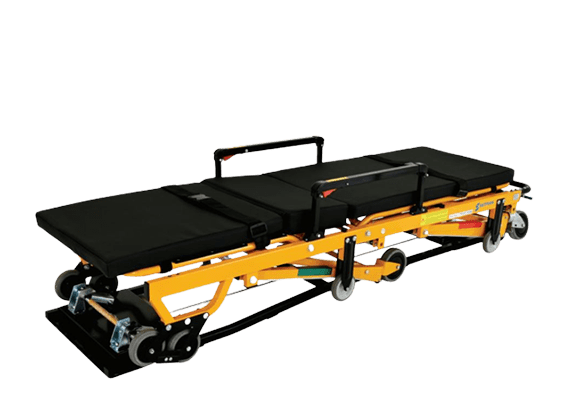

Satpuda 320WD Model Image 1

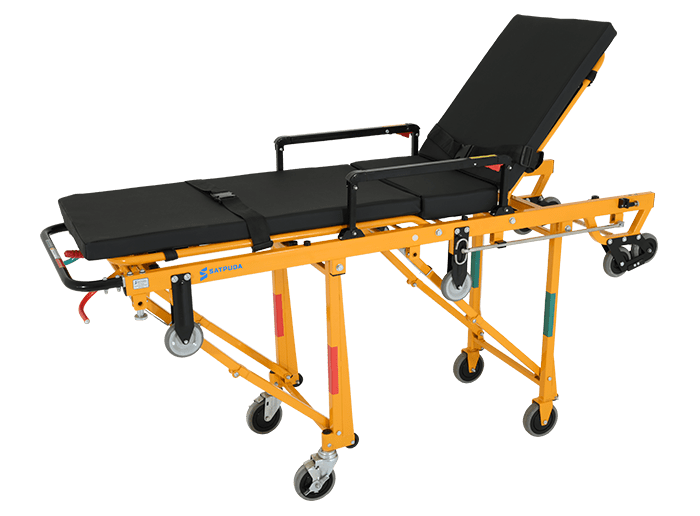

Satpuda 320WD Model Image 2

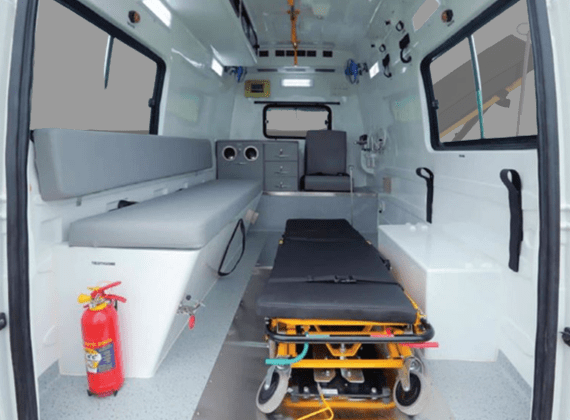

Satpuda 320WD Model Image 3
Satpuda 919D Model Image

Technical Data

  • Length

    Length: 1862mm

  • Width

    Width: 550mm

  • Wheel Diameter

    Wheel Diameter: 125mm

  • Brakes

    Brakes: On rear wheels

  • Vehicle loading height

    Vehicle loading height: 575mm

  • Structural Material

    Structural Material: Mild Steel

  • Safe Working Load

    Safe Working Load: 200Kg

  • Collapsible Side Railing

    Collapsible Side Railing: Yes

  • I.V. Rod

    I.V. Rod: Yes (1nos.)

  • 10G Tested

    10G Tested

Features

Independent folding of front and rear legs

Actuation of front leg and rear leg is done by dedicated levers thus ensuring the comfort of the patient and operator while loading and unloading of the stretcher in the ambulance.

Independent Folding Mechanism

Collapsible side railing

The collapsible mechanism of the side railing ensures that the railings can be folded and retracted without fouling with vehicle's body or medical instruments.

Collapsible Side Railing

Back rest with 5 fixing positions

The beckrest can be easily adjusted to 5 different positions as per the patient's requirement. Designed to bring the backrest to flat position quickly for performing CPR. Back rest is fitted with an Aluminium back plate for performing CPR function.

Back Rest with Aluminium Plate

Provision for leg rest elevation

Adjustment for easy elevation of leg rest to create semi-fowler position. Provision is as per AIS-125 standard.

Provision for Leg Rest Elevation

Castor wheels with brake

Easy manoeuvrability of stretcher facilitated by use of ball bearing wheels. Side brake provision for easy locking and un-locking of stretcher wheels to arrest stretcher movement

Castor Wheels with Brake

Easy locking and unlocking of stretcher in ambulance

Stretcher is automatically locked into position by just sliding the stretcher in the locking base fixed on the vehicle floor. A simple pull to the locking base lever releases the stretcher from the locking base.

Easy Locking and Unlocking Mechanism
Optional lock (Non AIS)
Optional Lock 1
Optional Lock 2
Easy Locking and Unlocking Mechanism
